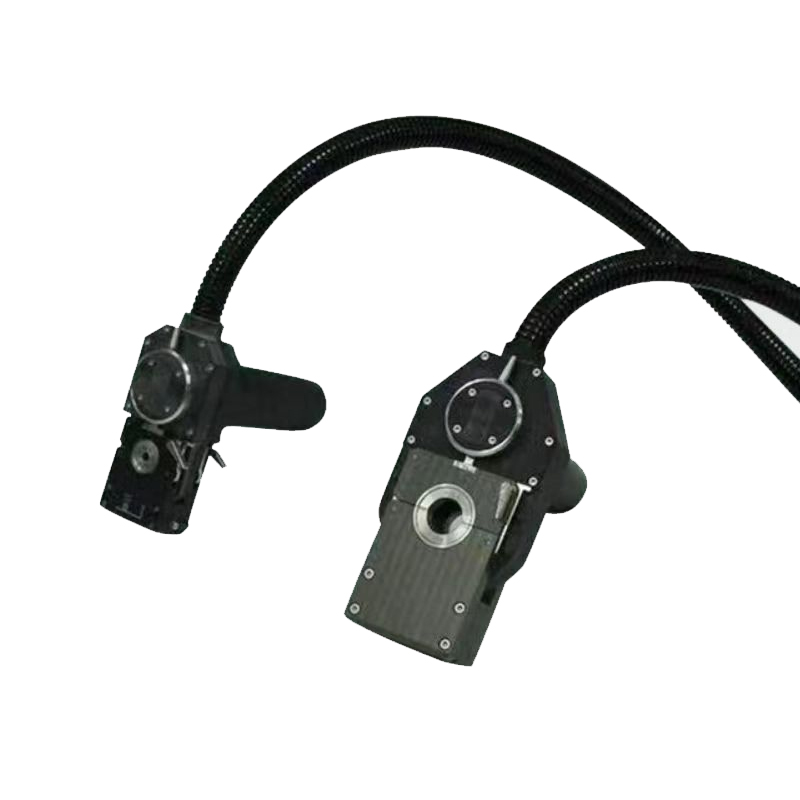

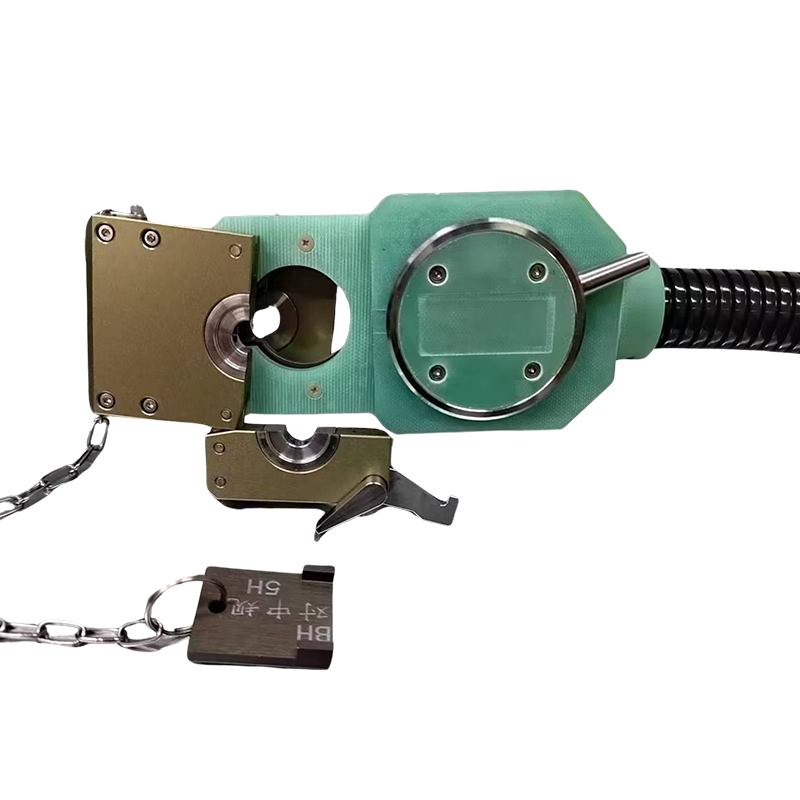

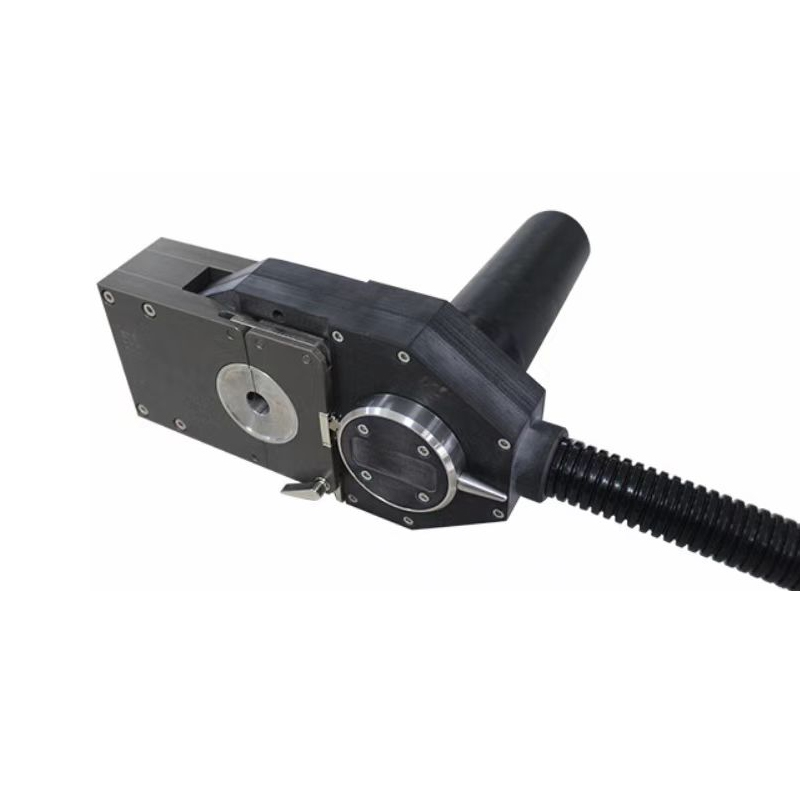

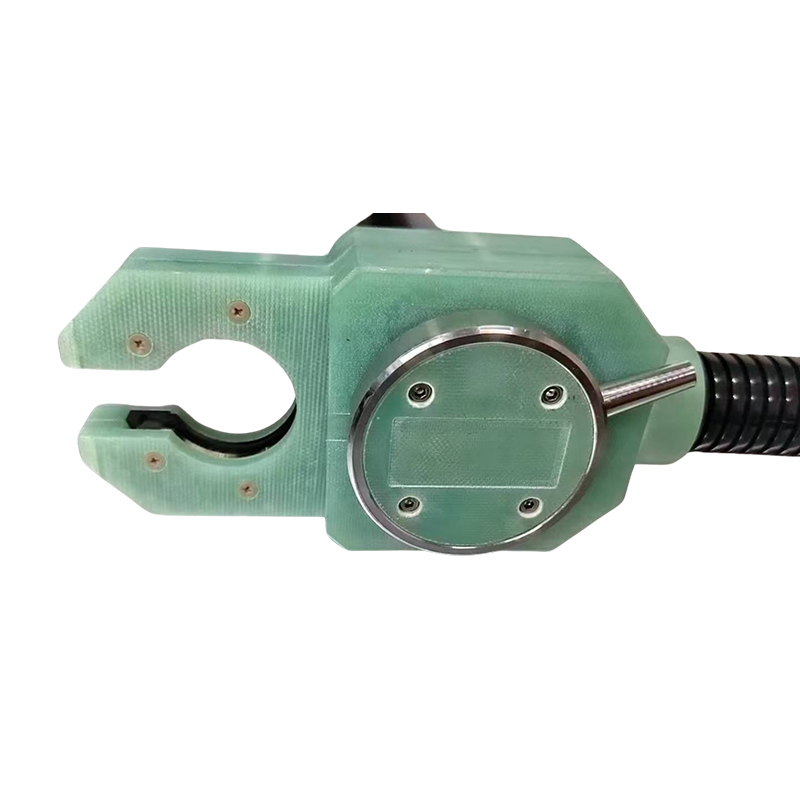

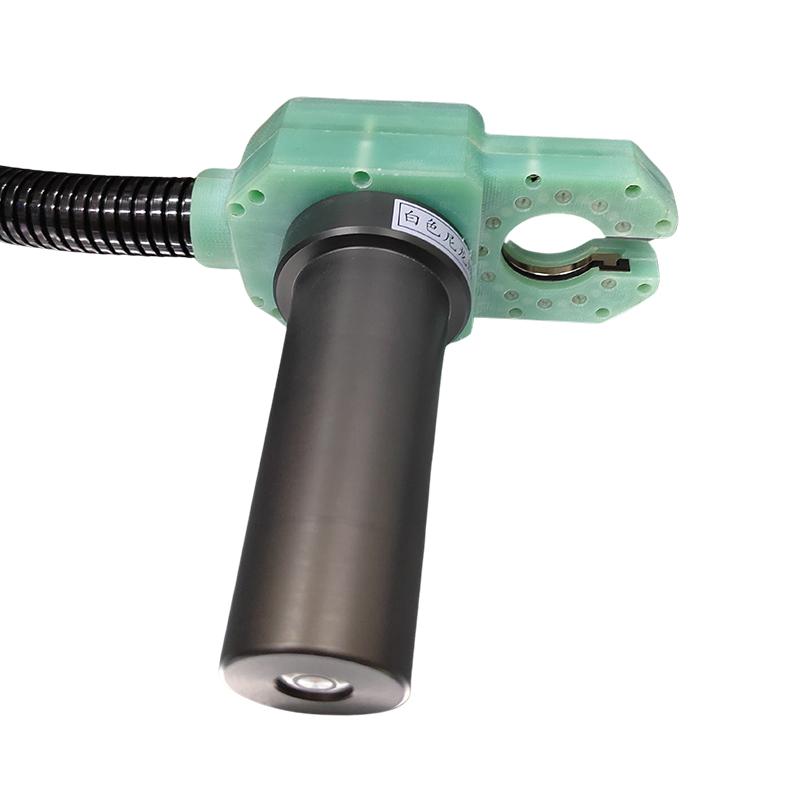

微型管道封闭焊头
密封焊焊头为狭长形构造，水冷却功能强劲，可以承受很高的负载；
Ø 适用于不锈钢、钛合金等材质的薄壁管管焊接
Ø 主要应用于医药管道、食品、生物工程、电子、仪器仪表、安装管道等行业
Ø 封闭式焊接，焊接保护效果好，表面成形美观，适合操作空间小的现场安装，可达性好
Ø 旋转无缠绕结构，枪体水冷却，焊枪轻便且暂载率高
Ø 定位方式为夹块定位，定位准确
Ø 手柄上配备操作按钮，方便控制设备的各项动作
Ø 标配线缆8米，其他长度尺寸可定制
| 技术参数 | AS40 | AS80 | AS118 | AS158 |
| 材料 | 碳钢 不锈钢 钛及合金 | |||
| 钨极（mm） | 1.6/2.4 | 1.6/2.4 | 1.6/2.4 | 2.4/3.2 |
| 冷却 | 水冷 | |||
| A mm | 100 | 155 | 195 | 270 |
| B mm | 50 | 77 | 96 | 130 |
| C mm | 41.5 | 44 | 54 | 54 |
| D mm | 380 | 438 | 503 | 580 |
| 产品 | 工件外径 | 物料编号 | 重量kg | 发运重量 kg | |
| mm | inch | ||||
| AS40密封焊头 | 6-38.1 | 0.236-1.500 | 800 200 001 | 3.5 | 19 |
| AS80密封焊头 | 19.05-76.2 | 0.750-3.000 | 800 300 001 | 5 | 20 |
| AS118密封焊头 | 38.1-101.6 | 1.500-4.000 | 800 400 001 | 6.5 | 22 |
| AS158密封焊头 | 50.8-152.4 | 2.000-6.000 | 800 500 001 | 10.5 | 26 |
密封焊夹具
| 适用设备 | 管外径范围 | 物料编号 | 重量 Kg |
||
| mm | inch | ||||
| AS 40 | 6.35 | 0.250 | 800 200 120 | -- | |
| AS 40 | 9.52 | 0.375 | 800 200 121 | -- | |
| AS 40 | 12.75 | 0.502 | 800 200 122 | -- | |
| AS 40 | 19.05 | 0.750 | 800 200 123 | -- | |
| AS 40 | 25.4 | 1.000 | 800 200 124 | -- | |
| AS 40 | 32.0 | 1.260 | 800 200 125 | -- | |
| AS 40 | 38.1 | 1.500 | 800 200 126 | -- | |
| AS 80 | 19.05 | 0.750 | 800 300 120 | -- | |
| AS 80 | 25.4 | 1.000 | 800 300 121 | -- | |
| AS 80 | 32.0 | 1.260 | 800 300 122 | -- | |
| AS 80 | 38.1 | 1.500 | 800 300 123 | -- | |
| AS 80 | 42.0 | 1.654 | 800 300 124 | -- | |
| AS 80 | 50.8 | 2.000 | 800 300 125 | -- | |
| AS 80 | 63.5 | 2.500 | 800 300 126 | -- | |
| AS 80 | 76.2 | 3.000 | 800 300 127 | -- | |
| AS 118 | 38.1 | 1.500 | 800 400 120 | -- | |
| AS 118 | 42.0 | 1.654 | 800 400 121 | -- | |
| AS 118 | 50.8 | 2.000 | 800 400 122 | -- | |
| AS 118 | 63.5 | 2.500 | 800 400 123 | -- | |
| AS 118 | 76.2 | 3.000 | 800 400 124 | -- | |
| AS 118 | 88.9 | 3.500 | 800 400 125 | -- | |
| AS 118 | 101.6 | 4.000 | 800 400 126 | -- | |
| AS 158 | 76.2 | 3.000 | 800 500 120 | ||
| AS 158 | 88.9 | 3.500 | 800 500 121 | ||
| AS 158 | 101.6 | 4.000 | 800 500 122 | ||
| AS 158 | 114.3 | 4.500 | 800 500 123 | ||
| AS 158 | 127.0 | 5.000 | 800 500 124 | ||
| AS158 | 139.7 | 5.500 | 800 500 125 | ||
* 未标注尺寸请咨询销售商或者厂家，特殊尺寸提供定制。
